Thermodynamic Steam Trap — TD3600S Series

The Thermodynamic Steam Trap is simple and compact with a single moving part (disc) which opens to discharge condensate and closes in the presence of steam. Body materials are available in Stainless and Alloy Steels for pressures up to 3,600 PSIG. Widely used in higher pressure drip applications and critical tracing applications where condensate back-up is not permitted.

Applications

TD3600 model steam traps are designed to handle the drainage of condensate from extremely high-pressure systems and are commonly used as drip traps on high-pressure steam mains and steam supply lines. These traps are suitable for outdoor applications subject to freezing as well as for superheated steam conditions.

Key Features

• All models contain an integral strainer for protection against dirt and scale
• Complete internal working mechanism can be replaced while the trap body remains in-line
• Replacement capsule allows quick and complete method of repair
• Internal mechanism can be separated from the trap body, allowing field welding without damaging the seat area

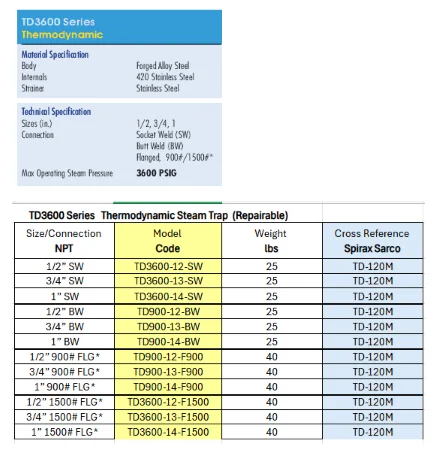

Selection Information

This trap was designed for handling the drainage of condensate from extremely high-pressure systems, with a maximum operating pressure of 3,600 PSIG. Available in Socket Weld and Butt Weld from 1/2″ through 1″.
