On Sale
Thermostatic Steam Trap – WT
Price range: $443.90 through $807.18
Draining condensate from steam mains and steam supply lines. They can also be used for steam tracing applications. The WT4000 is a High-Capacity Thermostatic steam trap and was specifically designed for removing condensate and air from larger process applications.
Thermostatic Steam Trap — WT4000 Series

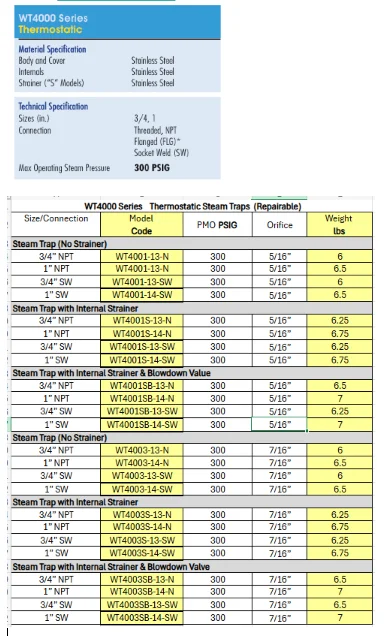

Specifications
| Series | WT4000 |
| Size/Connection | 3/4" NPT |
| PMO PSIG | 300 |
| Orifice | 5/16" |
| Weight | 6.0 lbs |
| Cross Reference | N450Y |
The WT4000 is a high-capacity thermostatic steam trap specifically designed for removing condensate and air from larger process applications. The body is made from stainless steel and can be fully repaired in-line by removing the cover and replacing the seat and thermal element.
Features
- Stainless steel body and precision-welded thermal element
- Highly resistant to water hammer
- Optional strainer (WT4000S) and blowdown valve (WT4000SB)
- Available in 3/4" and 1" NPT, Socket Weld, and Flanged
- Two orifice sizes: 7/16" standard and 5/16" reduced capacity
Applications
- Draining condensate from steam mains and supply lines
- Steam tracing applications
- Larger process applications requiring high capacity
| Weight | N/A |
|---|---|
| Brand | Watson McDaniel |
| Model | 3000 Series – 3/16” Orfice by, 4000 Series by |
