Thermostatic Steam Trap – Radiator Trap – TA25B and TA125 Series by
Original price was: $106.00.$91.90Current price is: $91.90.

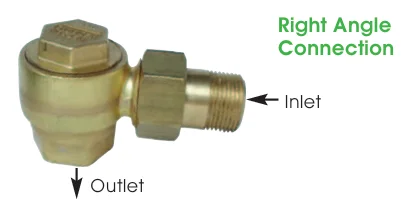

The TA25B & TA125 Series Radiator Traps with Right Angle Connection are Thermostatic Steam Traps that were specifically designed for removing condensate and air from 2-pipe steam heating systems.
Thermostatic Steam Trap — Radiator Trap TA25B and TA125 Series

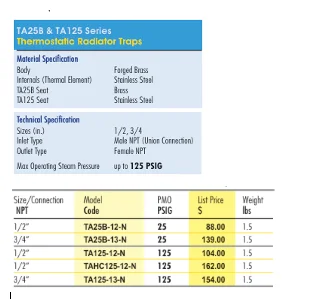

| Size/Connection | 1/2″ NPT |
| Weight | 1.5 lbs |
| Cross Reference | N125, RTA-125 |
| Series | TA25B & TA125 |
| PMO | 25 PSIG |
| Connections | 1/2″ & 3/4″ NPT |
| Pressure Ranges | 25 & 125 PSIG |
The TA25B & TA125 Series Radiator Traps with Right Angle Connection are Thermostatic Steam Traps specifically designed for removing condensate and air from 2-pipe steam heating systems. The bodies are made from a high-quality brass forging and can be fully repaired while the product remains in-line by removing the cap and easily replacing the seat and thermal element.
The TAHC125 is a high-capacity version for larger radiator or sterilizer applications and has a Maximum Operating Pressure of 125 PSIG.
Note: Max Operating Steam Pressure 125 PSIG.
| Weight | 1.0 lbs |
|---|---|
| Brand | Watson McDaniel |
