Overview
| Size/Connection | 1/2" NPT |
| Weight | 1.5 lbs |
| PMO | 650 PSIG |
| Cross Reference | DTS300 |
| Series | WT2000 |
| Connections | 1/2" and 3/4" NPT |
Applications
Draining condensate from steam mains and steam supply lines. Can also be used for steam tracing applications.
The WT2000 is a Medium Capacity Thermostatic steam trap made from Stainless Steel, often used for process applications because of excellent air venting capability. These versatile traps are also used for steam tracing, as drip traps on steam mains and supply lines, or as an air-vent for heat exchangers. Small and compact with an integral strainer.
The WT2000 is seal welded and therefore non-repairable. It can NOT be welded in-line or failure of the Thermal Element may occur.

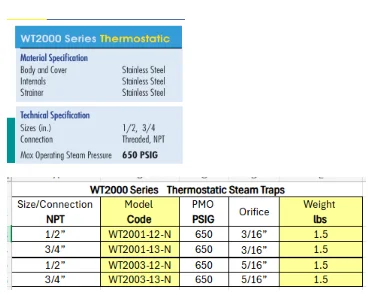

Selection Information
- 5/16" Standard Capacity — Generally used on process applications
- 3/16" Reduced Capacity — Used for steam tracing or on drip applications
| Size/Connection | 1/2″ NPT |
|---|---|
| Weight | 1.5 lbs |
| PMO | 650 PSIG |
| Cross Reference | DTS300 |
| Series | WT2000 |
| Connections | 1/2″ and 3/4″ NPT |
