Thermodynamic Steam Trap — TD600S Series

The Thermodynamic Steam Trap is simple and compact with a single moving part (disc) which opens to discharge condensate and closes in the presence of steam. Widely used in higher pressure drip applications and critical tracing applications where condensate back-up is not permitted.

Applications

Draining condensate from steam mains and steam supply lines. Can also be used for steam tracing applications.

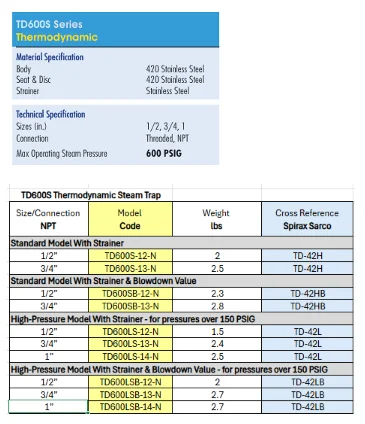

Model Comparison

Selection Information

The TD600LS has reduced discharge orifice holes, which are preferable in terms of performance, longevity, and efficiency, especially at pressures above 150 PSIG. For most drip applications the 1/2″ TD600LS should have sufficient capacity. For higher load drip applications or if a 3/4″ pipe connection is required, use the 3/4″ TD600LS for best results.

Note: The TD600 Steam Trap body and seat is a one-piece integral design and therefore cannot be welded. Socket Weld or Flange connections are not available. If a repairable design or weldable trap is required, consider the TD700S or UTD450 with Universal Connector Series.
