WT3000 Thermostatic Trap, 5/16″ Orifice, 1/2″ NPT
1/2″ NPT

Overview

Size/Connection1/2" NPT
Weight4.25 lbs
Cross ReferenceN650Y
SeriesWT3000
PMO650 PSIG
Body MaterialStainless Steel
Connections1/2", 3/4", 1" NPT or SW; also available flanged

Applications

Draining condensate from steam mains and steam supply lines. Can also be used for steam tracing applications. The WT3000 is a Medium Capacity Thermostatic steam trap specifically designed for removing condensate and air from process applications.

The body is made from Stainless Steel and is fully repairable while the product remains in-line. Repair is done by removing the cover and replacing the seat and thermal element. Contains an extremely strong and rugged precision welded Stainless Steel thermal element which is highly resistant to waterhammer.

Orifice Options

  • 3/16" Reduced Capacity — Used for steam tracing or on drip applications
  • 5/16" Standard Capacity — Generally used on process applications

Options

  • WT3000S — with optional strainer
  • WT3000SB — with optional strainer and blowdown valve

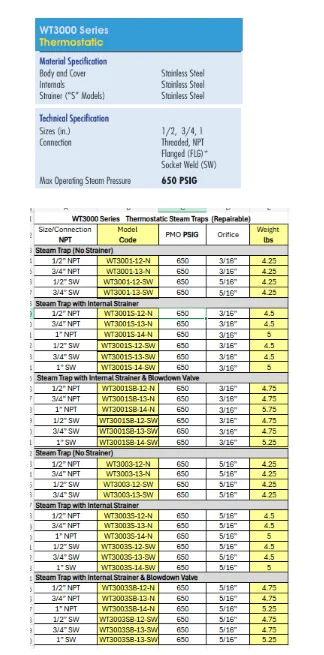

Specifications
Size/Connection1/2″ NPT
Weight4.25 lbs
Cross ReferenceN650Y
SeriesWT3000
PMO650 PSIG
Body MaterialStainless Steel
Connections1/2″, 3/4″, 1″ NPT or SW; also available flanged
OptionsWT3000S — with optional strainer · WT3000SB — with optional strainer and blowdown valve
