Float and Thermostatic Steam Trap – FTT
Price range: $412.69 through $2,003.64
Draining condensate from steam mains and steam supply lines. They can also be used for steam tracing applications.
FTT & FTTS Series — Float and Thermostatic Steam Traps
FTT & FTTS Series steam traps with in-line pipe connections are used for the removal of condensate and air in HVAC and industrial process applications such as unit heaters, water heaters, pressing machines, heat exchangers, and coils. They contain a high-quality welded stainless steel thermostatic air vent and stainless steel seat and mechanism.

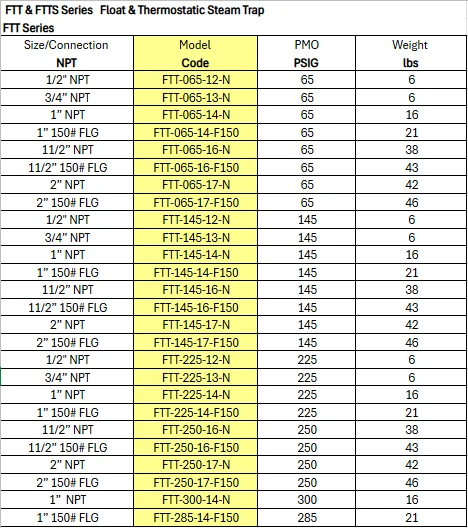

Specifications
| Series | FTT-285-14-F150 |
| Size/Connection | 1" / 150# FLG |
| PMO | 285 PSIG |
| Weight | 21 lbs |
| Cross Reference | FT14 |
| Max Operating Steam Pressure | 300 PSIG |
Features
- F&T traps have excellent air handling capability — better choice than Inverted Bucket traps for most process applications
- For drip applications (draining steam mains and supply lines), use 1/2" or 3/4" sizes
- High-quality welded stainless steel thermostatic air vent
Applications
- Unit heaters and water heaters
- Pressing machines
- Heat exchangers and coils
- Draining condensate from steam mains and supply lines
Selection Information
Select a model with a higher maximum working pressure than the steam system. For example, the FTT-065 has a maximum working pressure of 65 PSIG.
| Weight | N/A |
|---|---|
| Brand | Watson McDaniel |
| Pressure Rating | S Series 145 PMO PSIG by, S Series 225 PMO PSIG by, S Series 65 PMO PSIG by, Series 145 PMO PSIG by, Series 225 PMO PSIG by, Series 250 PMO PSIG by, Series 285 PMO PSIG by, Series 300 PMO PSIG by, Series 65 PMO PSIG by |
