Inverted Bucket Steam Trap – IB103
Price range: $160.40 through $656.32
The Thermodynamic Steam Trap is simple and compact with a single moving part (disc) which opens to discharge condensate and closes in the presence of steam.
Inverted Bucket Steam Trap — IB1033 Series
The IB Inverted Bucket Steam Traps were specifically designed for removing condensate from steam mains and steam supply lines. Inverted Bucket traps can also be used on unit heaters, laundry equipment, and other process applications. They can handle superheated steam when a check valve is used on the inlet side to prevent the trap from losing prime. Maximum Steam Pressure is 250 PSIG.
Specifications
| Series | IB1033 |
| Size/Connection | 3/4" NPT |
| PMO | 70 PSIG |
| Weight | 17 lbs |
| Connections Available | 1/2" through 1-1/2" NPT |

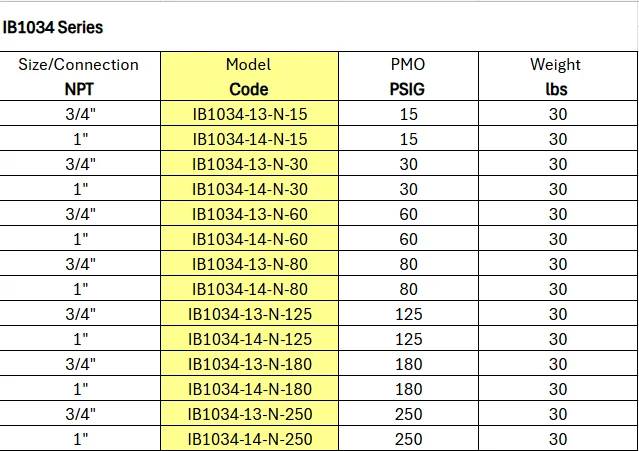

IB Series Models
| Without Strainer | IB1031 / IB1032 / IB1033 / IB1034 |
| With Strainer | IB1041 / IB1031S / IB1042 / IB1044 / IB1038S |
Selection Information
- Select a model with a maximum operating pressure (PMO) that meets or exceeds the maximum steam pressure, or the trap may not open.
- Choose a model that will handle the capacity requirement based on the differential pressure across the trap.
- For FTES, Max Operating Steam Pressure is up to 300 PSIG.
| Weight | N/A |
|---|---|
| Brand | Watson McDaniel |
| Pressure Rating | 1 Series by, 1S Series 125 PMO PSIG by, 2 Series 125 PMO PSIG by, 2 Series 15 PMO PSIG by, 2 Series 200 PMO PSIG by, 2 Series 250 PMO PSIG by, 2 Series 30 PMO PSIG by, 2 Series 70 PMO PSIG by, 3 Series 15 PMO PSIG by, 3 Series 200 PMO PSIG by, 3 Series 250 PMO PSIG by, 3 Series 30 PMO PSIG by, 3 Series 70 PMO PSIG by, 3 Series 80 PMO PSIG by, 4 Series 125 PMO PSIG by, 4 Series 15 PMO PSIG by, 4 Series 180 PMO PSIG by, 4 Series 250 PMO PSIG by, 4 Series 30 PMO PSIG by, 4 Series 60 PMO PSIG by, 4 Series 80 PMO PSIG by |
