Universal Trap Modules — Bi-Metallic Trap Module UB450 Series

The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and connectors is used in steam systems where a simplified and economical maintenance program of steam traps is desired. These Universal Style quick replacement steam traps can be used on steam supply lines as well as for tracing and small process applications.

Key Features

• Steam trap is replaced without having to unthread piping
• Remove and replace by removing only 2 bolts with a socket or open-end wrench
• Trap module can swivel 360° on the universal connector allowing proper orientation

Product Overview

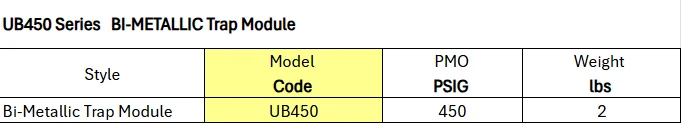

The UB450 Bi-Metallic Steam Trap Module is used on steam tracing and small process applications where accurate control of condensate discharge temperature is required. The UB450 mounts to any 2-bolt Quick-Change Universal Connector. Max Operating Steam Pressure up to 450 PSIG.

Note: Initial Opening Temperature of the trap can be set from 120°F to 390°F.
