Non-Electric Condensate Return Pump – Pump-Trap Combination, PMPT Series with Internal Steam Trap by
Original price was: $6,857.00.$5,945.02Current price is: $5,945.02.
A Pump-Trap is used in place of a Steam Trap to drain condensate from a process application when the steam pressure in the process is not sufficient to push the condensate thru the steam trap and into the condensate return line.
Non-Electric Condensate Return Pump — PMPT Series with Internal Steam Trap

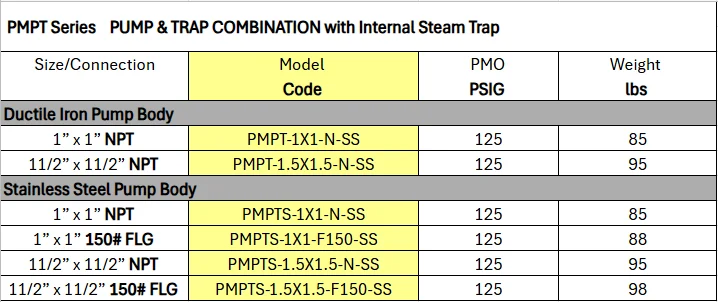

Specifications
| Series | PMPT-1X1-N-SS |
| Size/Connection | 1" X 1" NPT |
| PMO PSIG | 125 |
| Weight | 85 lbs |
A Pump-Trap is used in place of a steam trap to drain condensate when steam pressure is insufficient to push condensate through the trap into the return line. This frequently occurs when temperature control valves modulate steam supply, causing condensate backup, inconsistent heat transfer, and potential water hammer.
Features
- Low-profile pressure motive pump with internal steam trap
- Compact design for spatial constraints
- Excellent for drainage of modulating process equipment
- Pump body available in ductile iron or stainless steel
- ASME “UM” code stamp available
- Includes: Body, Cover, Internal mechanism, Check valves, and Internal Steam Trap
| Weight | 85.0 lbs |
|---|---|
| Brand | Watson McDaniel |
