Universal Trap Station Connectors – UTS600F Connector Flow to
Original price was: $2,362.00.$2,047.85Current price is: $2,047.85.
The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and multiple choices for connectors are used in steam systems where a simplified and economical maintenance program of steam traps is desired.
Class 600 Universal Trap Station Connectors — UTS600F Connector Flow to Right
Specifications

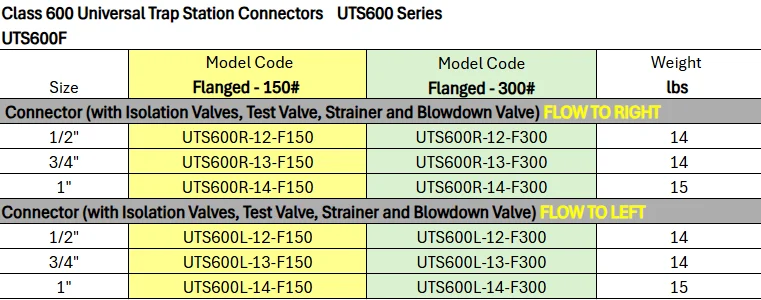

| Series | UTS600R-12-F150 |
| Size/Connection | 1/2" 150# FLG |
| Weight | 14 lbs |
The QUICK-CHANGE Universal Trap-Connector System allows simplified and economical maintenance of steam traps. The permanent connector installation uses a 2-bolt mounting arrangement for the Universal Steam Trap Module, allowing rapid trap replacement without unthreading piping. The trap module can swivel 360° on the connector for proper orientation.
Features
- Quick-change 2-bolt design for rapid trap replacement
- 360° swivel capability for flexible installation
- No piping removal required for trap service
- Available with strainer and blowdown valve options
Applications
- Chemical plants and petrochemical refineries
- Paper mills and industrial facilities
- Steam supply lines and tracing applications
| Weight | N/A |
|---|---|
| Brand | Watson McDaniel |
| Configuration | Left by, Right by |
Related products
-

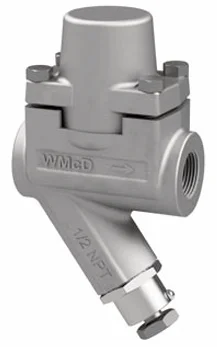

Thermostatic Steam Trap – Bi-Metallic with Internal Strainer
