Inverted Bucket Steam Trap – SIB & SIBH Series
Price range: $404.89 through $431.77
The SIB & SIBH Inverted Bucket Steam Traps were specifically designed for removing condensate from steam mains & steam supply lines.

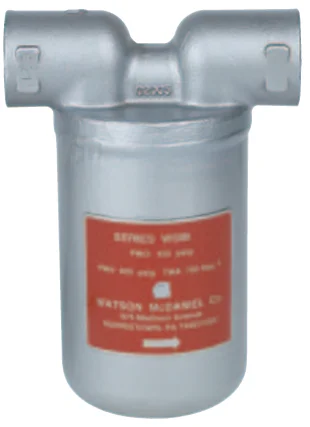

SIB & SIBH Series — Inverted Bucket Steam Traps
The SIB & SIBH Inverted Bucket Steam Traps were specifically designed for removing condensate from steam mains and steam supply lines. They can also be used on unit heaters, laundry equipment, and other smaller process applications. Maximum Steam Pressure is 450 PSIG. Available in 1/2″ and 3/4″ NPT and Socket Weld connections. The stainless steel body is seal welded and therefore these units are non-repairable.
Specifications
| Size/Connection | 1/2" NPT |
| PMO | 125 PSIG |
| Weight | 5.5 lbs |
| Max Steam Pressure | 450 PSIG |
| Body Material | Stainless Steel (seal welded, non-repairable) |

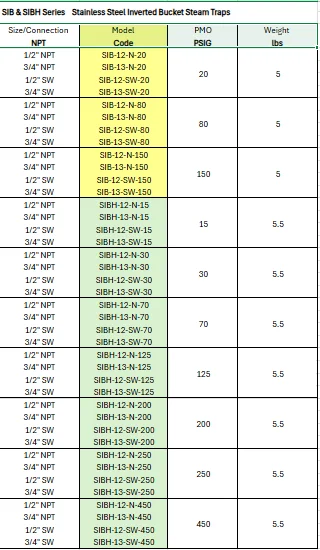

Series Models
| SIB | Normal Capacity |
| SIBH | Physically Larger & Higher Capacity |
Selection Information
- The PMO rating of the selected model must meet or exceed the maximum steam pressure, or the trap may not open.
- Condensate capacity (lbs/hr) is based on the differential pressure across the trap.
- Built-in Inlet Check Valve is recommended when used on Superheated Steam.
| Weight | N/A |
|---|---|
| Brand | Watson McDaniel |
| Pressure Rating | 125 PMO PSIG by, 15 PMO PSIG by, 150 PMO PSIG by, 20 PMO PSIG by, 200 PMO PSIG by, 250 PMO PSIG by, 30 PMO PSIG by, 450 PMO PSIG by, 70 PMO PSIG by, 80 PMO PSIG by |
Related products
-

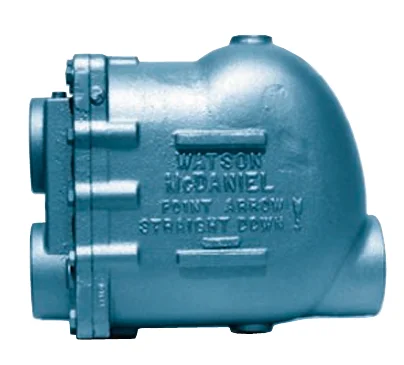

Float and Thermostatic Steam Trap – FTE
