Float and Thermostatic Steam Trap – FTE
Price range: $1,881.39 through $10,651.10
Draining condensate from steam mains and steam supply lines. They can also be used for steam tracing applications.
FTE & FTES Series — High Capacity Float and Thermostatic Steam Traps
The FTE & FTES Series Float & Thermostatic Steam Traps are HIGH CAPACITY traps specifically designed for removing condensate and air from HVAC and industrial process applications with extremely high condensate load requirements. Examples include reboilers, absorption chillers, and large air handling coils.
Specifications
| Series | FTES-200-18-N |
| Size/Connection | 2-1/2" NPT |
| PMO | 200 PSIG |
| Weight | 150 lbs |
| Cross Reference | FTB-200-CS,250-LS-10 |

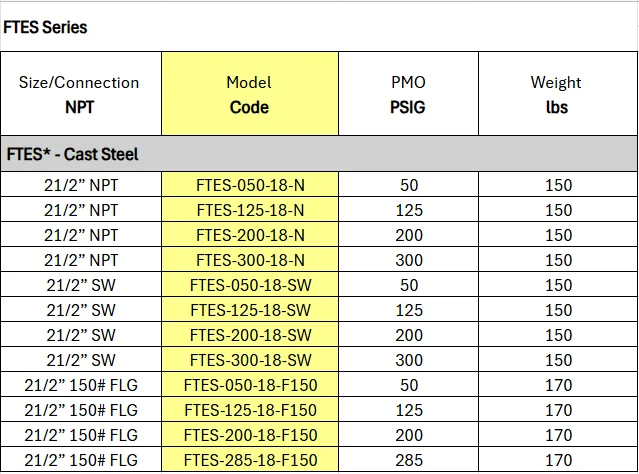

Series Models
| FTE | Ductile Iron body — available in 1-1/2" through 2-1/2" NPT |
| FTES | Cast Steel body — available in 2-1/2" NPT, Socket Weld, and Flange connections |
Features
- Ultra high capacity for extreme condensate loads
- High quality welded stainless steel thermostatic air vent
- Stainless seat and mechanism
- All units are in-line repairable
- Special Live Orifice air vents available for superheated steam applications
Applications
- Draining condensate from steam mains and supply lines
- Reboilers and absorption chillers
- Large air handling coils
- HVAC and industrial process applications
Selection Information
Select a model that can handle the maximum working pressure of the steam system. For FTES, Max Operating Steam Pressure is up to 300 PSIG.
Note: We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 100 pounds. These costs will be billed separately.
| Weight | N/A |
|---|---|
| Brand | Watson McDaniel |
| Pressure Rating | S Series 125 PMO PSIG by, S Series 200 PMO PSIG by, S Series 285 PMO PSIG by, S Series 300 PMO PSIG by, S Series 50 PMO PSIG by, Series 125 PMO PSIG by, Series 20 PMO PSIG by, Series 200 PMO PSIG by, Series 50 PMO PSIG by |
