Thermostatic Steam Trap – WT2500 Series by
Original price was: $300.00.$260.10Current price is: $260.10.
Draining condensate from steam mains and steam supply lines. They can also be used for steam tracing applications. The WT2500 is a Medium Capacity Thermostatic steam trap.

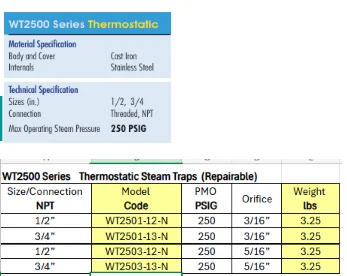

Thermostatic Steam Trap — WT2500 Series
| Size/Connection | 1/2″ NPT |
| Weight | 3.25 lbs |
| PMO | 250 PSIG |
| Cross Reference | N450 |
| Series | WT2500 |
| Connections | 1/2″ and 3/4″ NPT |
Applications
Draining condensate from steam mains and steam supply lines. Can also be used for steam tracing applications.
The WT2500 is a Medium Capacity Thermostatic steam trap. They can be used as drip traps for removing condensate as well as air from steam mains. They are also used for removing condensate and air in process applications or for steam tracing. The WT2500 is also commonly used as an air vent for heat exchangers.
Fully in-line repairable by removing the cover and replacing the seat and thermal element. Not available with a strainer.
Selection Information
- 5/16″ Standard Capacity — Generally used on process applications
- 3/16″ Reduced Capacity — Used for steam tracing or on drip applications
| Weight | 3.0 lbs |
|---|---|
| Brand | Watson McDaniel |
Related products
-
Thermostatic Steam Trap – WT2000 Series by
Original price was: $445.00.$385.82Current price is: $385.82. -
Thermostatic Steam Trap – WT1000 Series by
Original price was: $210.00.$182.07Current price is: $182.07. -

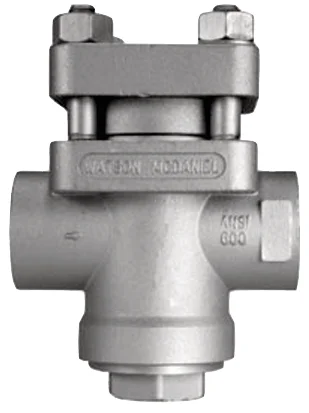

Thermodynamic Steam Trap – TD
