Float and Thermostatic Steam Trap – WFT Series
Price range: $275.71 through $924.22
Draining condensate from steam mains and steam supply lines. They can also be used for steam tracing applications.
Float and Thermostatic Steam Trap — WFT Series

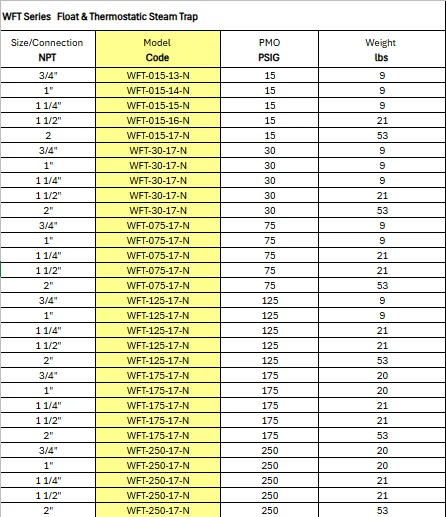

Specifications
| Series | WFT-175-13-N |
| PMO PSIG | 175 |
| Size/Connection | 3/4" NPT |
| Weight | 20 lbs |
| Cross Reference | FT-175, 175-A3, FT0175H-3 |
The WFT Series Float and Thermostatic Steam Traps are designed for efficient removal of condensate and air from steam systems. The float mechanism provides continuous condensate discharge, while the thermostatic air vent ensures rapid air removal during startup and operation. Suitable for process applications, heat exchangers, and steam distribution systems.
Applications
- Draining condensate from steam mains and supply lines
- Heat exchangers and process equipment
- Steam tracing applications
| Weight | N/A |
|---|---|
| Brand | Watson McDaniel |
| Pressure Rating | 125 PMO PSIG by, 15 PMO PSIG by, 175 PMO PSIG by, 250 PMO PSIG by, 30 PMO PSIG by, 75 PMO PSIG by |
