Float-Type Overflow Steam Trap -WOF Series by
Original price was: $8,666.00.$7,513.42Current price is: $7,513.42.
The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and multiple choices for connectors are used in steam systems where a simplified and economical maintenance program of steam traps is desired.

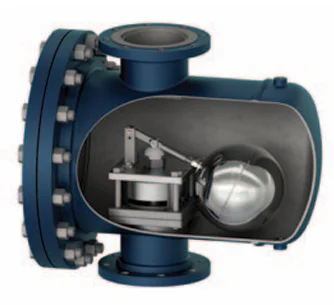

Float-Type Overflow Steam Trap — WOF Series

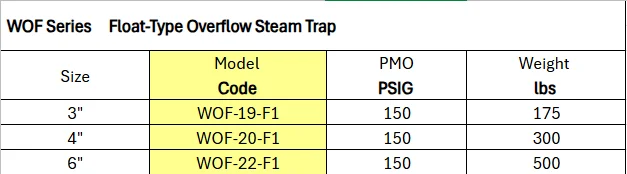

Specifications
| Series | WOF |
| Size/Connection | 3" (2-bolt) |
| PMO PSIG | 150 |
| Weight | 175 lbs |
The WOF Series Float-Type Overflow Steam Trap is designed to trap steam and safely drain excess condensate overflow from deaerators or similar vessels. Features a carbon steel fabricated body (stainless steel optional) with 1/16" corrosion allowance and UM Code Stamp.
Features
- Internal float and valve assembly in stainless steel for long service life
- Balanced piston design for increased shut-off tightness
- Compatible with QUICK-CHANGE Universal Trap-Connector System
- 2-bolt mounting for rapid trap replacement
- 360° swivel on universal connector
Applications
- Deaerator overflow drainage
- Chemical plants and petrochemical refineries
- Paper mills and industrial facilities
- Steam supply lines and process applications
Note: Smaller sizes available with the FT600 Series. We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 150 pounds.
| Weight | 175.0 lbs |
|---|---|
| Brand | Watson McDaniel |
