IB10 Series Inverted Bucket Steam Trap
1-1/4″ NPT

Overview

The IB Inverted Bucket Steam Traps were specifically designed for removing condensate from steam mains and steam supply lines. Inverted Bucket traps can also be used on unit heaters, laundry equipment, and other process applications. They can handle superheated steam when a check valve is used on the inlet side to prevent the trap from losing prime. Maximum Steam Pressure is 250 PSIG.

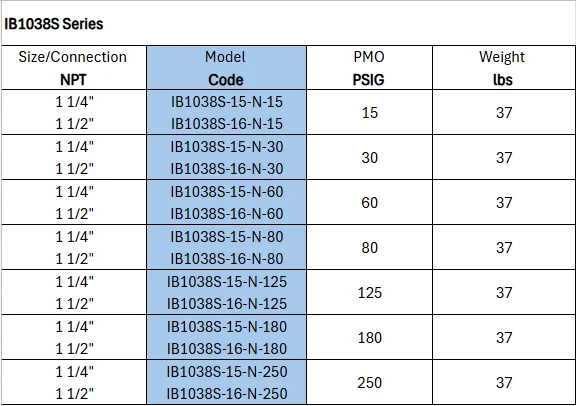

Specifications

SeriesIB1038S
Size/Connection1-1/4" NPT
PMO125 PSIG
Weight37 lbs
Connections Available1/2" through 1-1/2" NPT

IB Series Models

Without StrainerIB1031 / IB1032 / IB1033 / IB1034
With StrainerIB1041 / IB1031S / IB1042 / IB1044 / IB1038S

Selection Information

  • Select a model with a maximum operating pressure (PMO) that meets or exceeds the maximum steam pressure, or the trap may not open.
  • Choose a model that will handle the capacity requirement based on the differential pressure across the trap.
  • For FTES, Max Operating Steam Pressure is up to 300 PSIG.
Specifications
SeriesIB1038S
Size/Connection1-1/4″ NPT
PMO125 PSIG
Weight37 lbs
Connections Available1/2″–1-1/2″ NPT
Specificationsseriesib1038ssize/connection1-1/4" nptpmo125 psigweight37 lbsconnections available1/2" through 1-1/2" nptib series modelswithout strainerib1031 / ib1032 / ib1033 / ib1034with strainerib1041 / ib1031s / ib1042 / ib1044 / ib1038sselection informationSelect a model with a maximum operating pressure (PMO) that meets or exceeds the maximum steam pressure, or the trap may not open. · Choose a model that will handle the capacity requirement based on the differential pressure across the trap. · For FTES, Max Operating Steam Pressure is up to 300 PSIG.
