Float and Thermostatic Steam Trap – FT600 Series 1-1/2 Inch Size/Connection by
Original price was: $6,883.00.$5,967.56Current price is: $5,967.56.
PMO PSIG: 65 FT600 Series steam traps with Cast Steel Body were specifically designed for removing condensate and air from higher pressure steam applications or where steel bodies are specified.
Float and Thermostatic Steam Trap — FT600 Series

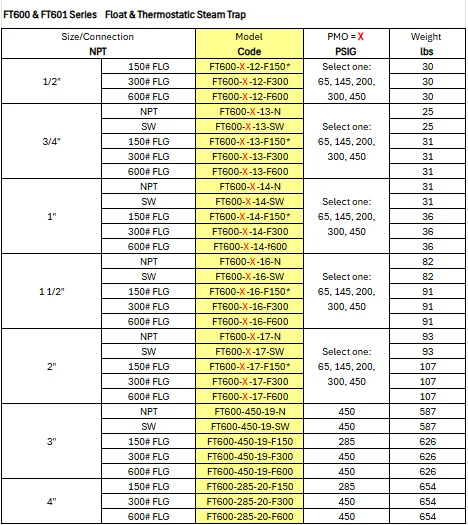

Specifications
| Series | FT600-65-16-N |
| Size/Connection | 1-1/2" NPT |
| PMO PSIG | 65 |
| Weight | 82 lbs |
The FT600 Series steam traps with cast steel body are specifically designed for removing condensate and air from higher pressure steam applications or where steel bodies are specified. Excellent air-handling capability makes float and thermostatic traps a better choice than bucket traps for applications requiring quick system start-up. Maximum steam pressure is 450 PSIG.
Series Options
- FT600: Carbon Steel body
- FT601: 316L Stainless Steel body (identical design)
Note: The thermostatic air vent is replaced with a Special Bleed Orifice on all pressures above 400 PSIG. 285 PSIG max for 150# Flanges.
Applications
- Chemical plants and petrochemical refineries
- Re-boilers and heat exchangers
- Critical process applications
- Higher pressure steam systems
| Weight | 82.0 lbs |
|---|---|
| Brand | Watson McDaniel |
