Condensate Return Pumps — PMPM Series Cast Iron Low-Capacity (Mini) Pressure Motive Pump

The stand-alone Pressure Motive Pump (PMP) consists of the pump tank, the internal operating mechanism, and a set of inlet and outlet check valves. The internal mechanism is equipped with the Patented “Snap-Assure” design which extends the life of the pump. Mechanism incorporates heat-treated stainless steel wear items.

These units can operate using steam, air, nitrogen or other pressurized inert gases as the motive force. Depending on the particular model, pump tanks can be made from Ductile Iron, Fabricated Steel or Stainless Steel. An additional receiver or reservoir tank will be required to complete the system.

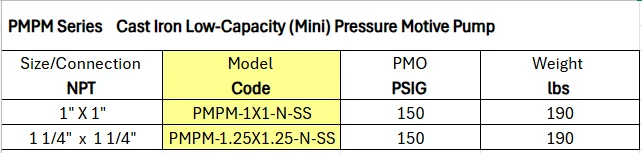

PMPM Series — Cast Iron Low-Capacity (Mini) Pressure Motive Pump

The PMPM mini pressure motive pump has lower pumping capacity than the standard PMPF and the PMPC models. These pump tanks are required when draining condensate from process equipment positioned close to the ground which limits the filling head of the pump. The tank body is made of cast iron.

Standard Includes

• Body
• Cover
• Internal mechanism
• Check valves

Note: We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 150 pounds. These costs will be billed separately.
