Universal Trap Modules — Thermostatic Steam Trap Module UT450 Series

The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and connectors is used in steam systems where a simplified and economical maintenance program of steam traps is desired.

Key Features

• Steam trap is replaced without having to unthread piping

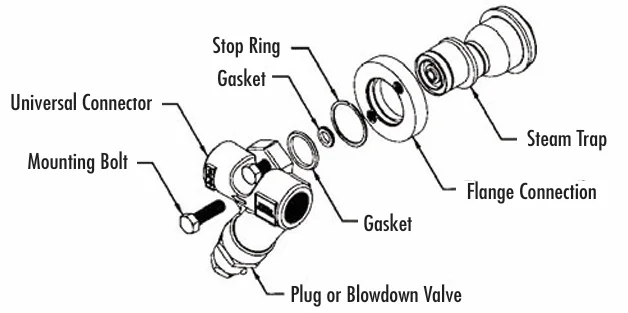

• Remove and replace by removing only 2 bolts with a socket or open-end wrench

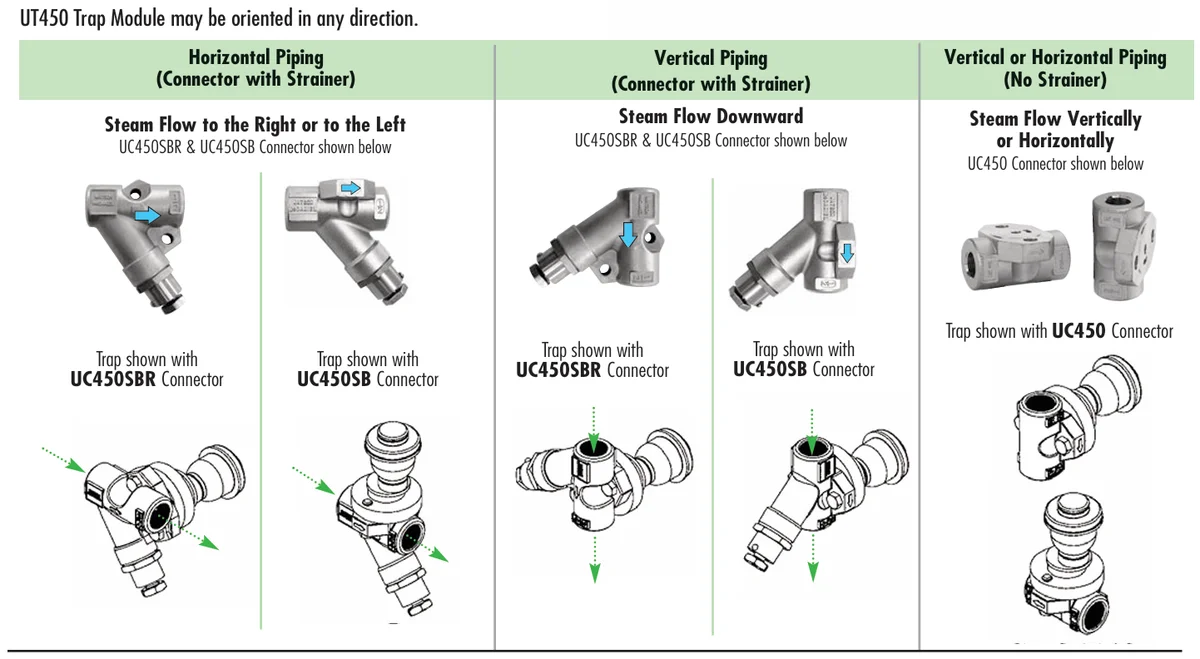

• Trap module can swivel 360° on the universal connector allowing proper orientation

Product Overview

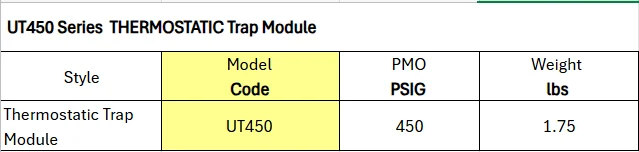

The UT450 Series Thermostatic Steam Trap Modules are used anywhere conventional thermostatic steam traps are used, such as drip, tracing and light process applications. The UT450 mounts to any 2-bolt Quick-Change Universal Connector. Max Operating Steam Pressure up to 450 PSIG.

Connector Selection

• UC450 (No Strainer)
• UC450S (Strainer)
• UC450SB (Strainer & Blowdown Valve)
• UC450SR (Strainer)
• UC450SBR (Strainer & Blowdown Valve)
• UC450SL (Strainer)
• UC450SBL (Strainer & Blowdown Valve)
• UTS600R (Test Station)

Note: Make certain to select a model that can handle the maximum working pressure of the steam system.
