Thermostatic Steam Trap – Radiator Trap – TS25B and TS125 Series by
Original price was: $120.00.$104.04Current price is: $104.04.
Draining condensate from steam mains and steam supply lines. They can also be used for steam tracing applications.
Thermostatic Steam Trap — Radiator Trap TS25B and TS125 Series

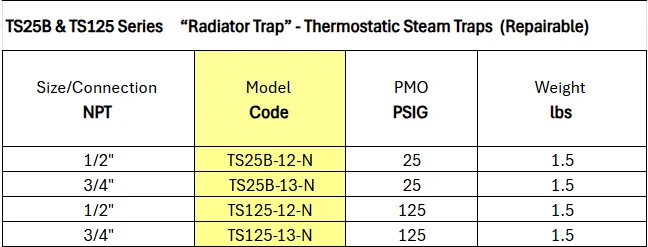

| Size/Connection | 1/2″ NPT |
| Weight | 1.5 lbs |
| Cross Reference | 122S, 1GHSW, 3GHSW |
| Series | TS25B & TS125 |
| PMO | 25 PSIG |
| Connections | 1/2″ & 3/4″ NPT |
| Pressure Ranges | 25 & 125 PSIG |
Applications
Draining condensate from steam mains and steam supply lines. Can also be used for steam tracing applications.

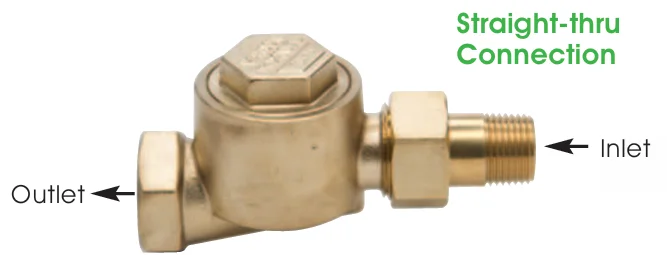

The TS25B & TS125 Series Radiator Traps with Straight-thru (in-line) Connection are Thermostatic Steam Traps specifically designed for removing condensate and air from 2-pipe steam heating systems. The bodies are made from a high-quality brass forging and can be fully repaired while the product remains in-line by removing the cap and easily replacing the seat and thermal element.
Note: Max Operating Steam Pressure 125 PSIG.
| Weight | 1.0 lbs |
|---|---|
| Brand | Watson McDaniel |
