Condensate Return Pumps – Pressure Motive Pumps PMPNT Series Skid Mounted Simplex by
Original price was: $13,876.00.$12,030.49Current price is: $12,030.49.
Receiver Size: 3” x 36” Pipe Receiver Complete packaged skid systems include one or more Pressure Motive Pumps (PMPs) along with a vented receiver mounted oncommon base.
Condensate Return Pumps — PMPNT Series Skid Mounted Simplex

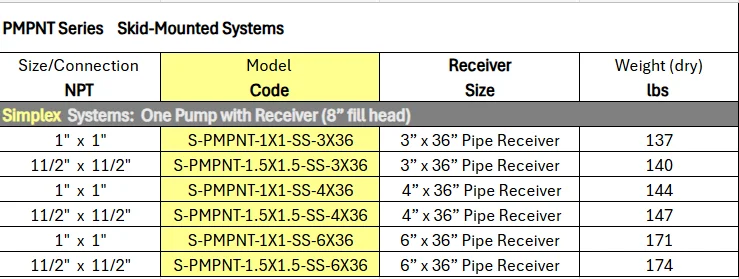

Specifications
| Series | S-PMPNT-1X1-SS-3X36 |
| Size/Connection | 1" X 1" NPT |
| Receiver Size | 3" x 36" Pipe Receiver |
| Weight | 137 lbs |
Complete packaged simplex skid system includes one Pressure Motive Pump (PMP) with a vented receiver mounted on a common base. The receiver collects condensate prior to it flowing into the pump tank and temporarily stores condensate during the discharge cycle. The receiver and vent must be adequately sized for proper flash steam separation.
Features
- Heavy-duty pump with steel receiver
- Includes: Isolation Valve(s), SS Check Valves, Schedule 40 Piping
- Mounted on a Steel Base — only four field connections required
- Duplex & Triplex configurations available for increased capacity
Note: We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 100 pounds. These costs will be billed separately.
| Weight | 137.0 lbs |
|---|---|
| Brand | Watson McDaniel |
