Condensate Return Pumps — PMPNT Series Ductile Iron Low-Profile (Mini) Pressure Motive Pump

The stand-alone Pressure Motive Pump (PMP) consists of the pump tank, the internal operating mechanism, and a set of inlet and outlet check valves. The internal mechanism is equipped with the Patented “Snap-Assure” design which extends the life of the pump. Mechanism incorporates heat-treated stainless steel wear items.

These units can operate using steam, air, nitrogen or other pressurized inert gases as the motive force. Depending on the particular model, pump tanks can be made from Ductile Iron, Fabricated Steel or Stainless Steel. An additional receiver or reservoir tank will be required to complete the system.

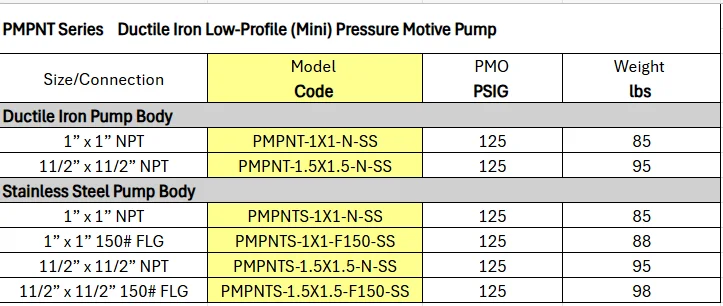

PMPNT Series — Ductile Iron Low-Profile (Mini) Pressure Motive Pump

The PMPNT is a low-profile pressure motive pump used for applications requiring compact design due to spatial constraints. This pump is typically used when liquids must be moved to higher elevation, higher pressure or extended distances. ASME “UM” code stamp is available. The tank body is available in ductile iron or stainless steel.

Standard Includes

• Body
• Cover
• Internal mechanism
• Check valves
