Overview

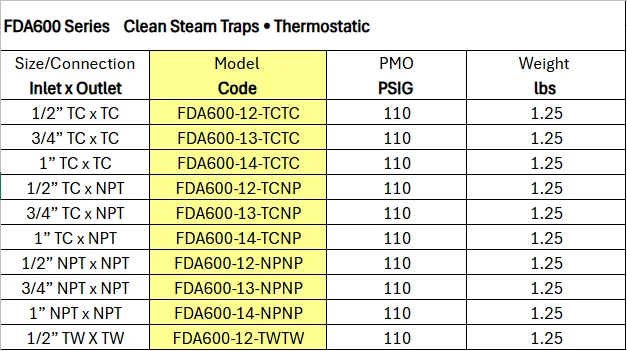

| Size/Connection | 1/2" TC x TC |
| Weight | 1.25 lbs |
| Series | FDA600 |
| PMO | 110 PSIG |
Sanitary Steam Traps are designed to offer free flow-through internal passages by incorporating very smooth internal finishes (20–25 Ra). For periodic passivation and sanitation of the system, these traps offer a tri-clamp connection on the body to allow for removal of the thermal element.
Applications
The FDA600 Series Thermostatic Steam Traps are used on clean steam applications as drip traps on piping runs as well as drainage for CIP (Clean in Place)/SIP (Sanitize in Place) systems and various process vessels.
Operating Principle
The thermostatic trap contains a welded 316L stainless steel thermal element that expands when heated and contracts when cooled. When air and condensate are present, the trap is in the open discharge position. When steam reaches the trap, the element expands, closing the trap tightly. All wetted parts are 316L stainless steel.
| Size/Connection | 1/2″ TC x TC |
|---|---|
| Weight | 1.25 lbs |
| Series | FDA600 |
| PMO | 110 PSIG |
