Steam Equipment – S-Cast Steel Float Type Liquid
Price range: $1,914.34 through $8,157.60
The WLDE & WLDES Series High-Capacity Float Type Liquid Drainers are engineered to meet the high flow requirements commonly found in heavy industrial process applications for air and other gases.
WLDE & WLDES Series — Float Type Liquid Drainers (High Capacity)
The WLDE & WLDES Series High-Capacity Float Type Liquid Drainers are engineered to meet the high flow requirements commonly found in large industrial processes. These units provide reliable, continuous liquid removal from compressed air and gas systems using a float-operated modulating valve.
Material Specifications
| Body (WLDE) | Cast Steel |
| Body (WLDES) | Stainless Steel |
| Internals | Stainless Steel |
Technical Specifications
| Sizes | 1-1/2" – 4" |
| Connections | Threaded (NPT), Socket Weld, Flanged (150#, 300#, 600#) |
| Max Operating Pressure | Up to 600 PSIG |
Operating Principles
As liquid enters the drainer, the float rises and opens the modulating discharge valve for smooth liquid removal. When liquid levels decrease, the float lowers to adjust discharge flow, ensuring continuous operation without gas or steam loss.
Applications
- High-capacity condensate drainage
- Compressed air and gas systems
- Chemical and petrochemical processes
- Large industrial process applications
Note: We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 150 pounds. These costs will be billed separately.
| Weight | N/A |
|---|---|
| Brand | Watson McDaniel |
| Configuration | Ductile Iron Float Type Liquid Drainer-High Capacity by, S-Cast Steel Float Type Liquid Drainer-High Capacity by |
Related products
-
Condensate Return Pumps – Pressure Motive Pumps PMPC Series Skid Mounted
Price range: $17,417.16 through $78,607.42 -

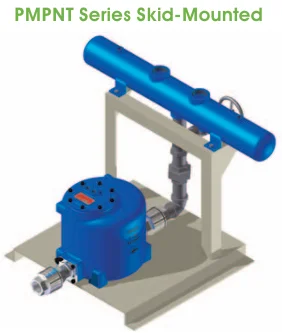

Condensate Return Pumps – Pressure Motive Pumps PMPNT Series Skid Mounted Simplex by
Original price was: $13,876.00.$12,030.49Current price is: $12,030.49. -

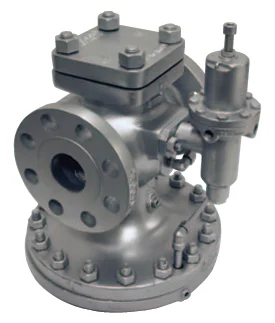

Steam Equipment – HSP-SS Series Pilot-Operated P
