Universal Trap Modules — Thermodynamic Trap Module UTD450 Series (Top Mount)

The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and connectors is used in steam systems where a simplified and economical maintenance program of steam traps is desired.

Key Features

• Steam trap is replaced without having to unthread piping

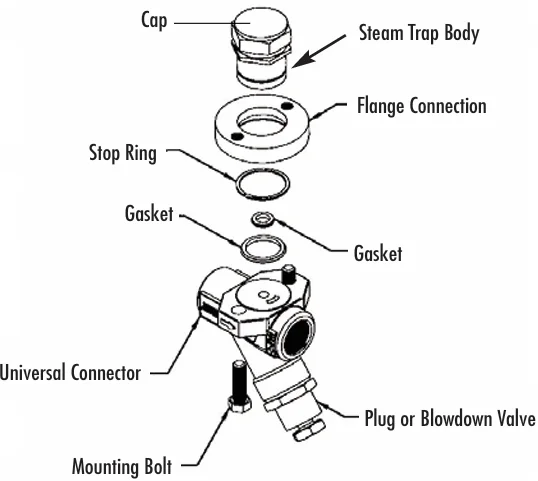

• Remove and replace by removing only 2 bolts with a socket or open-end wrench
• Trap module can swivel 360° on the universal connector allowing proper orientation

Product Overview

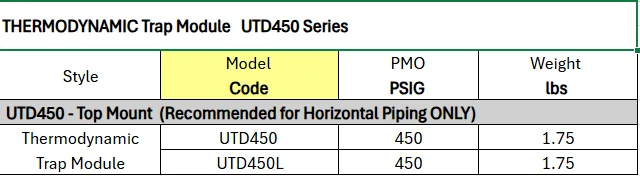

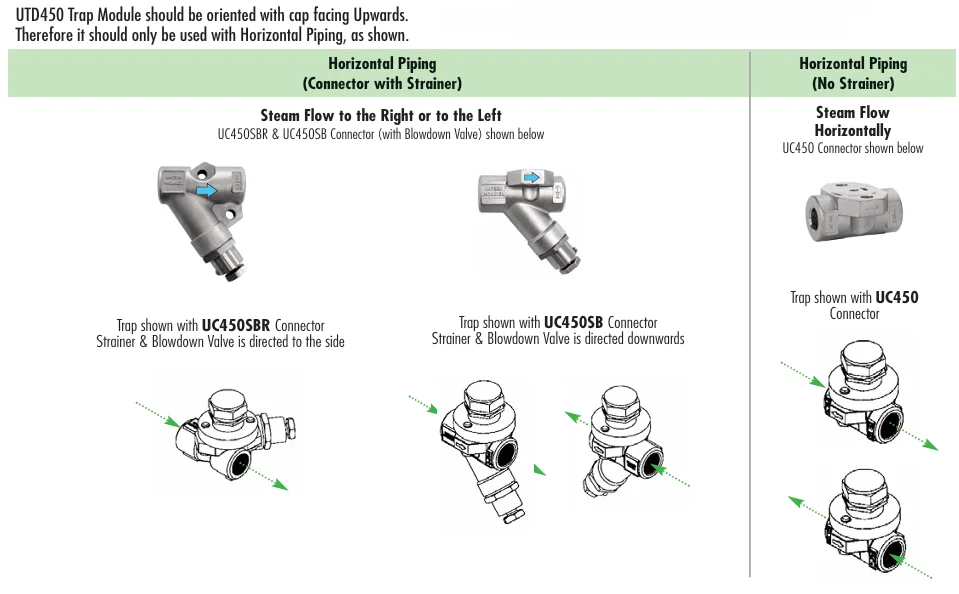

The UTD450 Thermodynamic Trap Modules were designed to work as drip traps for the draining of condensate from steam mains and other steam supply lines. This model is only recommended for horizontal piping installations; cap should be oriented upwards. These trap modules mount to any 2-bolt Quick-Change Universal Connector. UTD450L is the Low-Capacity Model. Max Operating Pressure is 450 PSIG.

Connector Selection

• UC450 (No Strainer)
• UC450S (Strainer)
• UC450SB (Strainer & Blowdown Valve)
• UC450SR (Strainer)
• UC450SBR (Strainer & Blowdown Valve)
• UC450SL (Strainer)
• UC450SBL (Strainer & Blowdown Valve)
