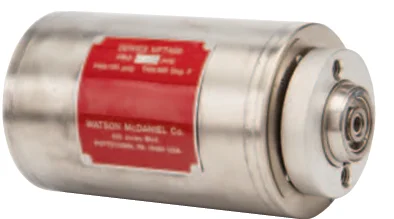

Universal Trap Modules — Float & Thermostatic Steam Trap Module UFT450 Series

The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and connectors is used in steam systems where a simplified and economical maintenance program of steam traps is desired. These Universal Style quick replacement steam traps can be used on steam supply lines as well as for tracing and small process applications.

Key Features

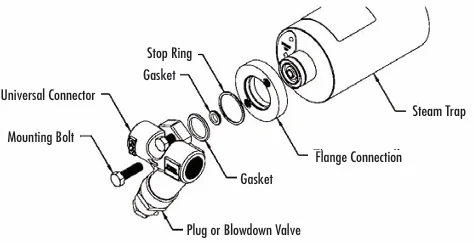

• Steam trap is replaced without having to unthread piping
• Remove and replace by removing only 2 bolts with a socket or open-end wrench
• Trap module can swivel 360° on the universal connector allowing proper orientation

Product Overview

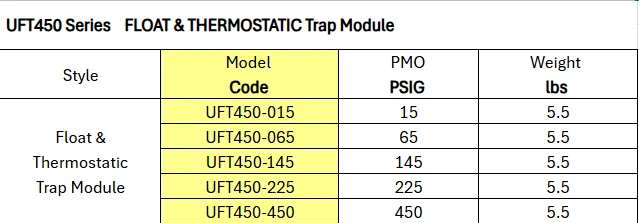

The UFT450 Series Float & Thermostatic Steam Trap Modules are typically used on process equipment that generates light condensate loads and requires excellent air handling capabilities. These relatively low capacity float & thermostatic trap modules can also be used in drip service on steam mains and steam supply lines. The UFT450 mounts to any 2-bolt connector. Max Operating Steam Pressure up to 450 PSIG.

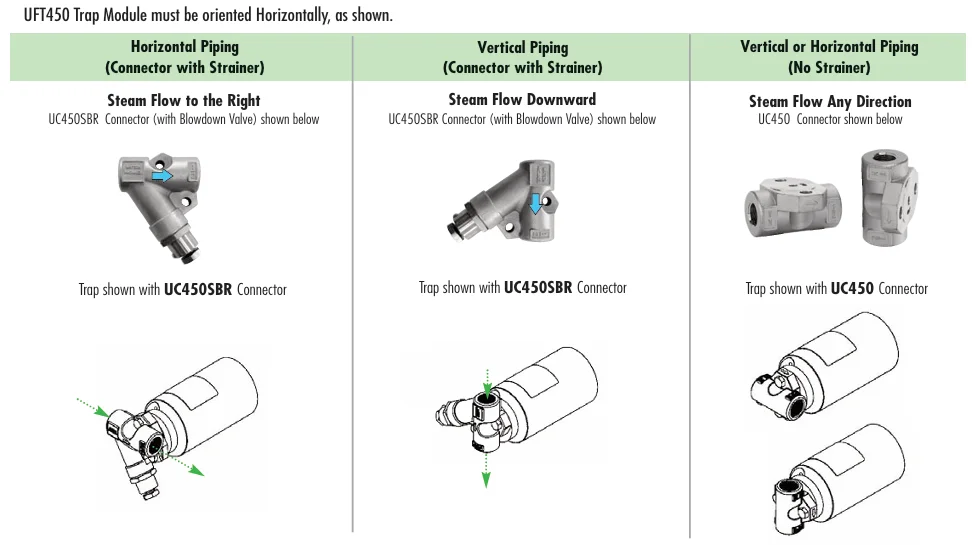

Connector Selection

• UC450 (No Strainer)
• UC450SR (Strainer)
• UC450SBR (Strainer & Blowdown Valve)
• UC450SL (Strainer)
• UC450SBL (Strainer & Blowdown Valve)
• UT600R (Test Station)

Note: Make certain to select a model that can handle the maximum working pressure of the steam system.
