Universal Trap Modules and Connectors Steam Trap – Inverted Bucket Universal Steam Trap Module USIB450
Price range: $490.72 through $515.87
PMO PSIG: 15 Applications: Draining condensate from steam mains and steam supply lines. They can also be used for steam tracing applications. The USIB450 Series Inverted Bucket type Steam Trap Module were specifically designed for removing condensate from steam mains & steam supply lines.
Universal Trap Modules — Inverted Bucket Steam Trap Module USIB450H Series

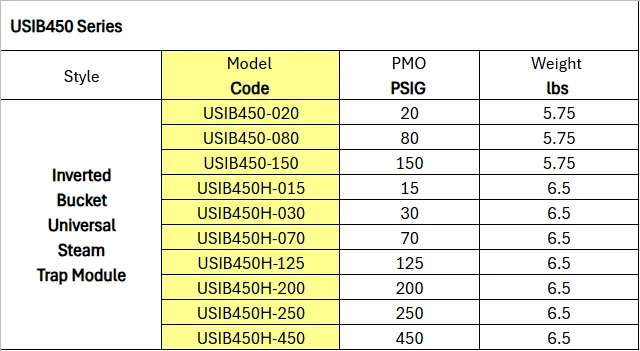

Specifications
| Series | USIB450H |
| Size/Connection | Universal (2-bolt) |
| PMO PSIG | 450 |
| Weight | 6.5 lbs |
The USIB450 Series Inverted Bucket Steam Trap Modules are specifically designed for removing condensate from steam mains and supply lines. Inverted Bucket traps can also be used on unit heaters, laundry equipment, and other process applications. Model USIB450H is physically larger with higher capacity than Model USIB450.
Models
- USIB450: Normal Capacity
- USIB450H: Higher Capacity

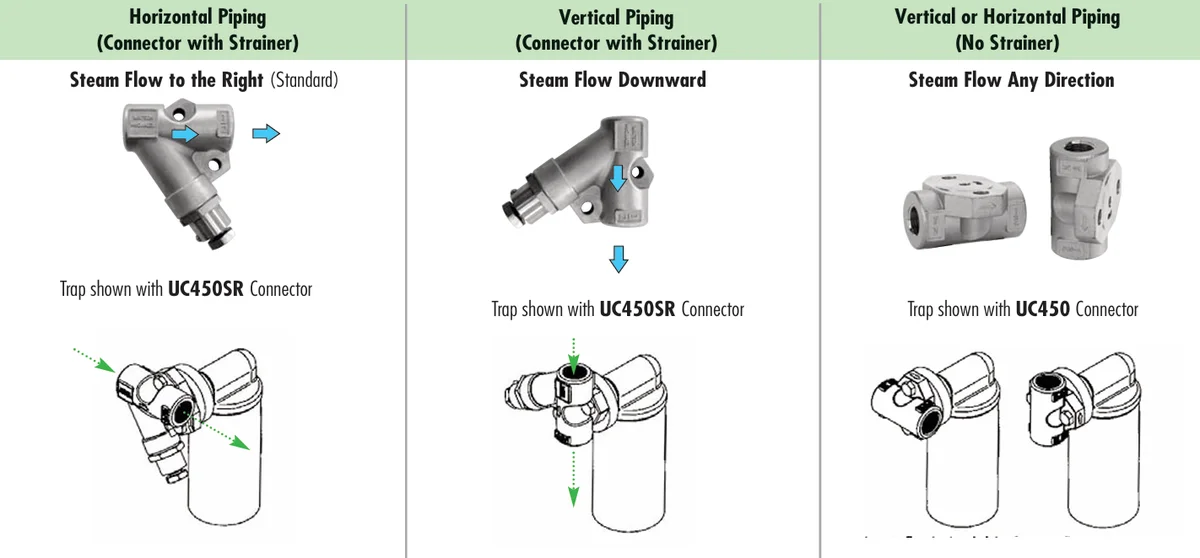

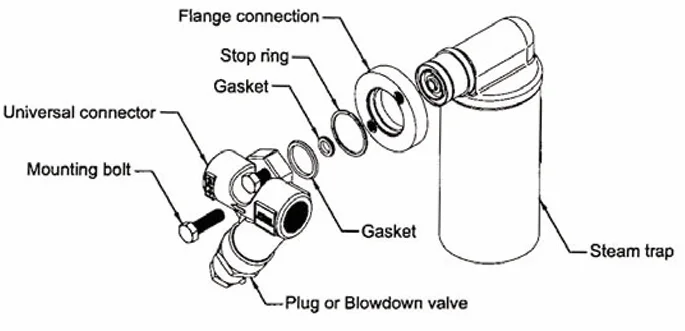

Compatible Connectors
- UC450 (No Strainer)
- UC450SR (Strainer)
- UC450SBR (Strainer & Blowdown Valve)
- TS600R (Test Station)
Applications
- Draining condensate from steam mains and supply lines
- Unit heaters and laundry equipment
- Steam tracing applications
Note: PMO = Maximum Working Pressure is 450 PSIG. Make certain to select a model that can handle the maximum working pressure of the steam system.
| Weight | N/A |
|---|---|
| Brand | Watson McDaniel |
| Model | H Series by, Series by |
