Universal Style Connectors UC450 Series — UC450SBR Type (Flow to Right with Strainer & Blowdown Valve)

The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and connectors is used in steam systems where a simplified and economical maintenance program of steam traps is desired. These Universal Style quick replacement steam traps can be used on steam supply lines as well as for tracing and small process applications.

Key Features

• Steam trap is replaced without having to unthread piping
• Remove and replace by removing only 2 bolts with a socket or open-end wrench
• Trap module can swivel 360° on the universal connector allowing proper orientation

Connector Configurations

Four basic configurations of connectors are available. The UC450SR (with strainer, flow to right) is the most common connector choice. Choice is based upon strainer orientation or if a piping interference exists. All connector styles operate with any trap module. The R and L versions are mirror images of each other and are selected based on which side the user prefers the trap mounted on.

• UC450 — No Strainer
• UC450S — Strainer
• UC450SB — Strainer & Blowdown Valve

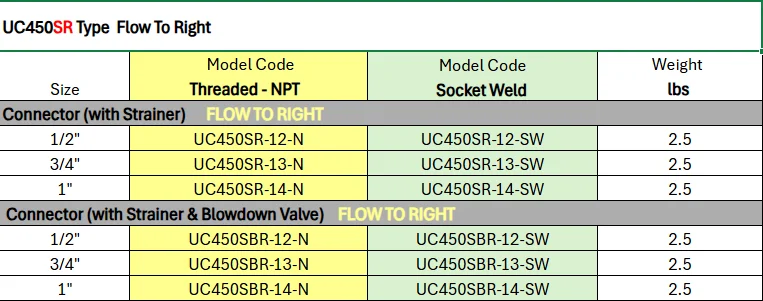

• UC450SR — Flow to Right with Strainer
• UC450SBR — Flow to Right with Strainer & Blowdown Valve
• UC450SL — Flow to Left with Strainer
• UC450SBL — Flow to Left with Strainer & Blowdown Valve

Note: Dependent on specific Trap Module used with connector.
