Thermodynamic Steam Trap Module — UTD450H and UTD450HSP Series

The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and connectors is used in steam systems where a simplified and economical maintenance program of steam traps is desired. These Universal Style quick replacement steam traps can be used on steam supply lines as well as for tracing and small process applications. They are commonly used in chemical plants, petrochemical refineries, paper mills and other industrial facilities.

Key Features

• Steam trap is replaced without having to unthread piping
• Remove and replace by removing only 2 bolts with a socket or open-end wrench
• Trap module can swivel 360° on the universal connector allowing proper orientation

Product Overview

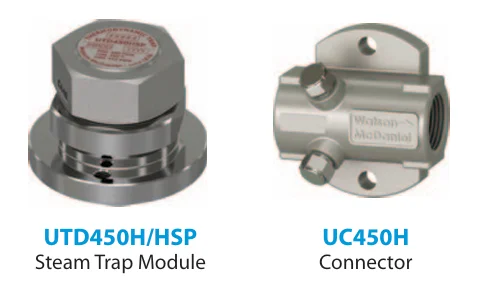

The UTD450H Series Trap Module is a highly specialized Thermodynamic Steam Trap Module. Designed to mount on 1″ UC450H Universal Quick-Change connectors, it offers extremely high capacity capability for special drip applications such as steam tunnels and manholes where long distances between steam traps and deteriorating pipe insulation are common.

Combined with potential groundwater accumulations, capacity requirements in these applications far exceed normal drip applications. With only 2 bolts the non-swivel steam trap module can be quickly replaced, making this design ideally suited for hazardous locations. Two bottom port options are included for possible monitoring. The UTD450HSP is a higher capacity version.

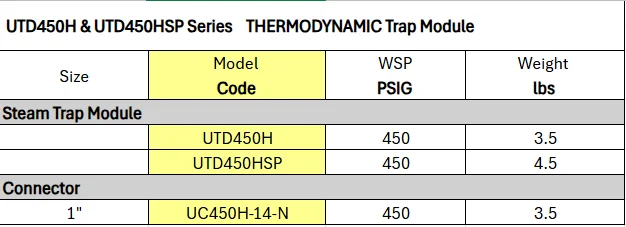

Note: Maximum Operating Steam Pressure is 450 PSIG.
