Clean Steam Traps – Thermostatic FDA800 by
Original price was: $946.00.$820.18Current price is: $820.18.
Inlet x Outlet: 1/2” TC x TC PMO PSIG: 150 Sanitary Steam Traps are designed to offer free flow-through internal passages by incorporating very smooth internal finishes (20-25 Ra).
Clean Steam Traps — Thermodynamic FDA800 Series

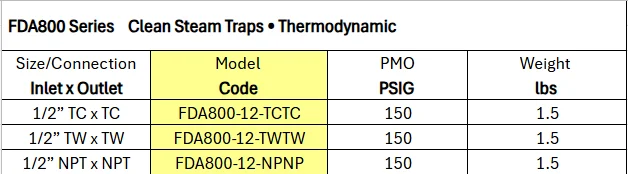

| Size/Connection | 1/2″ TC x TC |
| Weight | 1.5 lbs |
| Series | FDA800 |
| PMO | 150 PSIG |
Sanitary Steam Traps are designed to offer free flow-through internal passages by incorporating very smooth internal finishes (20–25 Ra). For periodic passivation and sanitation of the system, these traps offer a tri-clamp connection on the body to allow for removal of the thermal element.
Applications
The FDA800 Series Thermodynamic Clean Steam Traps are used in CIP (Clean in Place) and SIP (Sanitize in Place) systems as drip traps on steam mains as well as for drainage on various process vessels such as separators and filters.
Operating Principle
The thermodynamic trap has a cyclic on/off operation with a disc that is pushed open when condensate is present and pulled closed when steam tries to escape. Trap consists of all 316L stainless steel components.
| Weight | 1.5 lbs |
|---|---|
| Brand | Watson McDaniel |
Related products
-

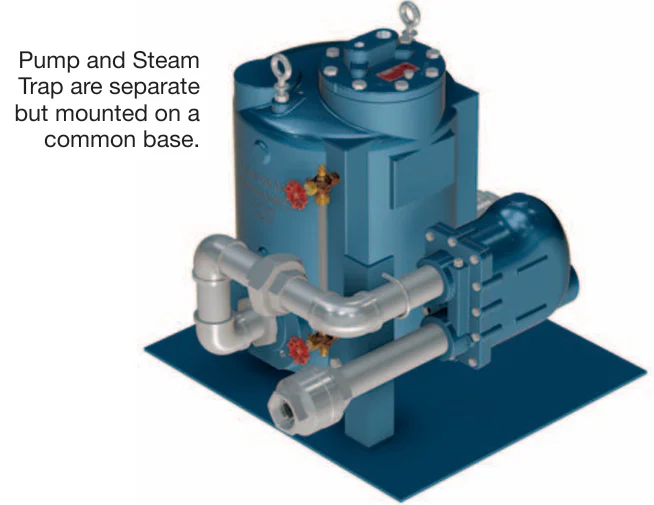

Non-Electric Condensate Return Pump – Pump-Trap Combination, WPT Series with External Steam Trap by
