Overview
| Size/Connection | 1/2" NPT |
| Weight | 0.65 lbs |
| Series | WDF2-12-N |
| PMO | 450 PSIG |
| Material | Stainless Steel |
| Available Sizes | 1/2" and 3/4" NPT and SW |
The WDF Diffuser was specifically designed to cushion the discharge from steam or air traps. They work to suppress the high velocity discharge often associated with blast-type steam traps in order to reduce noise, erosion and water hammer.

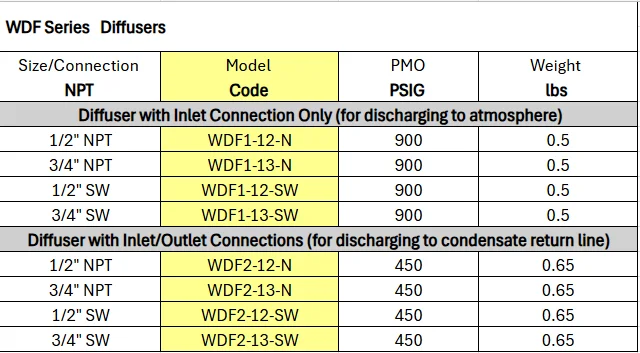

WDF1 vs WDF2 Series
- WDF1 — Inlet connection only, for discharging to atmosphere. Max Operating Pressure: 900 PSIG
- WDF2 — Inlet/Outlet connections, for discharging to condensate return line. Max Operating Pressure: 450 PSIG
Note: PMO = Maximum Working Pressure.
| Size/Connection | 1/2″ NPT |
|---|---|
| Weight | 0.65 lbs |
| Series | WDF2-12-N |
| PMO | 450 PSIG |
| Material | Stainless Steel |
| Available Sizes | 1/2″ and 3/4″ NPT and SW |
| Wdf1 vs wdf2 series | WDF1 — Inlet connection only, for discharging to atmosphere. Max Operating Pressure: 900 PSIG · WDF2 — Inlet/Outlet connections, for discharging to condensate return line. Max Operating Pressure: 450 PSIG |
