Overview

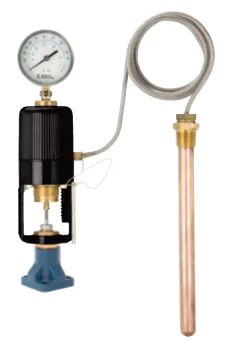

The PTRP Temperature Pilot is used with HD Regulators to control temperature in steam and process heating systems. It maintains precise temperature control for equipment such as oil heaters, ovens, process heaters, dryers, and jacketed kettles. The PTRP provides faster response and can regulate lower temperature ranges than standard PT Pilots.
Product Overview
- Available in both Indicating and Non-Indicating models
- Used for temperature control in a variety of industrial steam applications
- Faster response time for improved regulation
- Compatible with HD Regulator assemblies
Technical Specifications
| Temperature Control Range | 20–440 °F (varies by model) |
| Steam Inlet Pressure Range | 15–300 PSIG (standard main valve) |
| Low-Pressure Valve Range | 5–20 PSIG |
| Body Material | Cast Steel |
| Thermal System | Copper sensing bulb with 8′ capillary, SS armored protection |
Available Models
| Range Code | Temp Range (°F) | Non-Indicating | Indicating |
| 01 | 20–70 | PTRP-910108S15 | PTRP-940108S15 |
| 02 | 40–90 | PTRP-910208S15 | PTRP-940208S15 |
| 03 | 50–140 | PTRP-910308S15 | PTRP-940308S15 |
| 04 | 50–145 | PTRP-910408S15 | PTRP-940408S15 |
| 05 | 105–175 | PTRP-910508S15 | PTRP-940508S15 |
| 06 | 105–195 | PTRP-910608S15 | PTRP-940608S15 |
| 07 | 120–215 | PTRP-910708S15 | PTRP-940708S15 |
| 09 | 155–250 | PTRP-910908S15 | PTRP-940908S15 |
| 10 | 185–280 | PTRP-911008S15 | PTRP-941008S15 |
| 11 | 225–310 | PTRP-911108S15 | PTRP-941108S15 |
| 12 | 255–380 | PTRP-912208S15 | PTRP-942208S15 |
| 13 | 295–420 | PTRP-913308S15 | PTRP-943308S15 |
| 14 | 310–440 | PTRP-914408S15 | PTRP-941408S15 |
Options & Accessories
Low-Pressure Temperature Pilot Option available.
Note: The PTRP Series Temperature Pilots are accessories for HD Regulators and must be used with compatible main valves. Not standalone control devices.
| Temperature Control Range | 20–440 °F (varies by model) |
|---|---|
| Steam Inlet Pressure Range | 15–300 PSIG (standard main valve) |
| Low-Pressure Valve Range | 5–20 PSIG |
| Body Material | Cast Steel |
| Thermal System | Copper sensing bulb with 8′ capillary, SS armored protection |
| Product overview | Available in both Indicating and Non-Indicating models · Used for temperature control in a variety of industrial steam applications · Faster response time for improved regulation · Compatible with HD Regulator assemblies |
