Condensate Return Pumps – Pressure Motive Pumps PMPLS Series by
Original price was: $7,661.00.$6,642.09Current price is: $6,642.09.
The stand-alone Pressure Motive Pump (PMP) consists of the pump tank, the internal operating mechanism, and a set of inlet and outlet check valves.
Condensate Return Pumps — PMPLS Series (Carbon Steel Low-Profile Pressure Motive Pump)

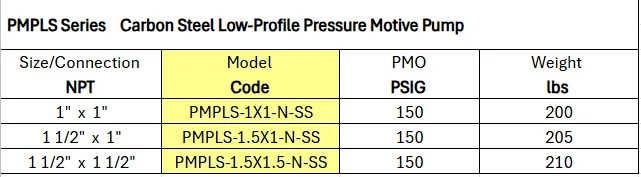

Specifications
| Series | PMPLS |
| Size/Connection | 1" X 1" NPT |
| PMO PSIG | 150 |
| Weight | 200 lbs |
The stand-alone PMPLS Pressure Motive Pump consists of the pump tank, internal operating mechanism, and inlet/outlet check valves. The PMPLS features a reduced-profile tank often required when draining condensate from process equipment positioned close to the ground, which limits filling head.
Features
- Body and cover manufactured from carbon steel
- Low-profile design for space-constrained installations
- ASME “UM” code stamped
- Patented “Snap-Assure” design with heat-treated stainless steel wear items
- Includes: Body, Cover, Internal mechanism, and Check valves
An additional receiver or reservoir tank will be required to complete the system.
Note: We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 150 pounds. These costs will be billed separately.
| Weight | 200.0 lbs |
|---|---|
| Brand | Watson McDaniel |
