Universal Trap Station Connectors – UTS600 Connector Flow to
Original price was: $1,342.00.$1,163.51Current price is: $1,163.51.
The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and multiple choices for connectors are used in steam systems where a simplified and economical maintenance program of steam traps is desired.

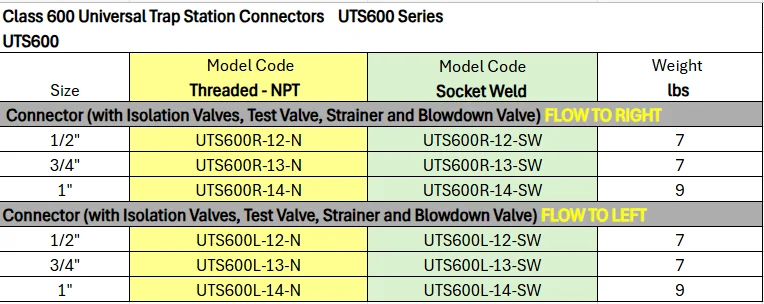

Class 600 Universal Trap Station Connectors — UTS600 Connector Flow to Right
Specifications
| Series | UTS600R-12-N |
| Size/Connection | 1/2" NPT |
| Weight | 7 lbs |

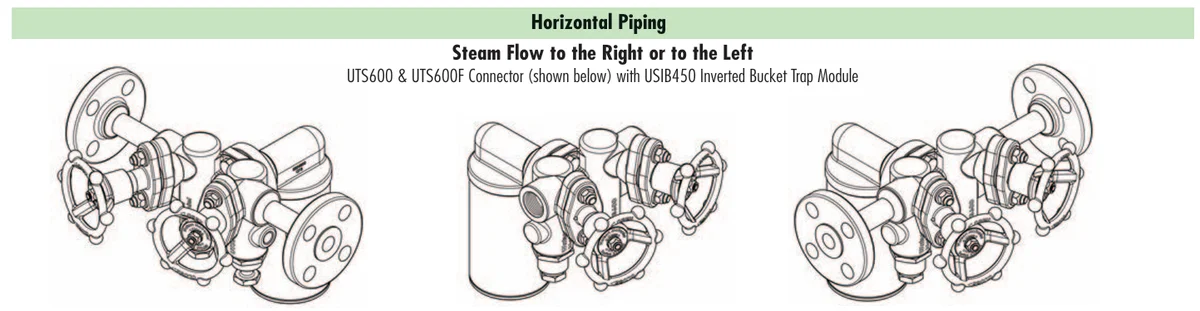

The QUICK-CHANGE Universal Trap-Connector System provides simplified and economical steam trap maintenance. The permanent connector installation with 2-bolt mounting allows the steam trap module to be removed and replaced in minutes without unthreading piping. The trap module can swivel 360° for proper orientation.
Features
- Quick-change 2-bolt design for rapid trap replacement
- 360° swivel capability for flexible installation
- NPT threaded connection
- Available with strainer and blowdown valve options
Applications
- Chemical plants and petrochemical refineries
- Paper mills and industrial facilities
- Steam supply lines and tracing applications
| Weight | N/A |
|---|---|
| Brand | Watson McDaniel |
| Configuration | Left by, Right by |
