Non-Electric Condensate Return Pump – Pump-Trap Combination, WPT Series with External Steam Trap by
Original price was: $11,580.00.$10,039.86Current price is: $10,039.86.
Description Pump and Trap: PMPLS with 2” FTE-200 A Pump-Trap is used in place of a Steam Trap to drain condensate from a process application when the steam pressure in the process is not sufficient to push the condensate thru the steam trap and into the condensate return line.
Non-Electric Condensate Return Pump — WPT Series with External Steam Trap

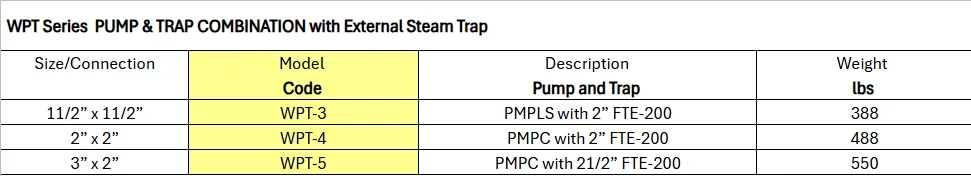

Specifications
| Series | WPT |
| Size/Connection | 1-1/2" X 1-1/2" NPT |
| Pump and Trap | PMPLS with 2" FTE-200 |
| Weight | 388 lbs |
A Pump-Trap is used in place of a steam trap to drain condensate when steam pressure is insufficient to push condensate through the trap into the return line. This frequently occurs when temperature control valves modulate steam supply, causing condensate backup, inconsistent heat transfer, and potential water hammer.
Features
- Stand-alone pump with appropriately sized external steam trap
- Factory pre-assembled on a common base plate for simple installation
- Use when capacity requirements exceed the PMPT (pump with internal trap)
- Includes: Body, Cover, Internal mechanism, Check valves, and External Steam Trap
Note: We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 150 pounds. These costs will be billed separately.
| Weight | 388.0 lbs |
|---|---|
| Brand | Watson McDaniel |
