Universal Trap Modules and Connectors – Thermodynamic Trap Module UTD450SM & UTD600LSM Series by
Original price was: $476.00.$412.69Current price is: $412.69.
& UTD600LSM PMO PSIG: 450 & 600 The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and multiple choices for connectors are used in steam systems where a simplified and economical maintenance program of steam traps is desired.
Universal Trap Modules — Thermodynamic Trap Module UTD450SM & UTD600LSM Series (Side Mount)
| Connection | Universal, 2-bolt |
| Weight | 2.5 lbs |
| Series | UTD450SM & UTD600LSM |
| PMO | 450 & 600 PSIG |
The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and connectors is used in steam systems where a simplified and economical maintenance program of steam traps is desired.
Key Features
- Steam trap is replaced without having to unthread piping

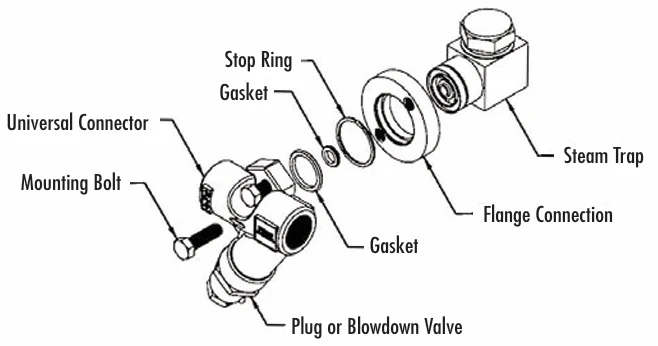

- Remove and replace by removing only 2 bolts with a socket or open-end wrench

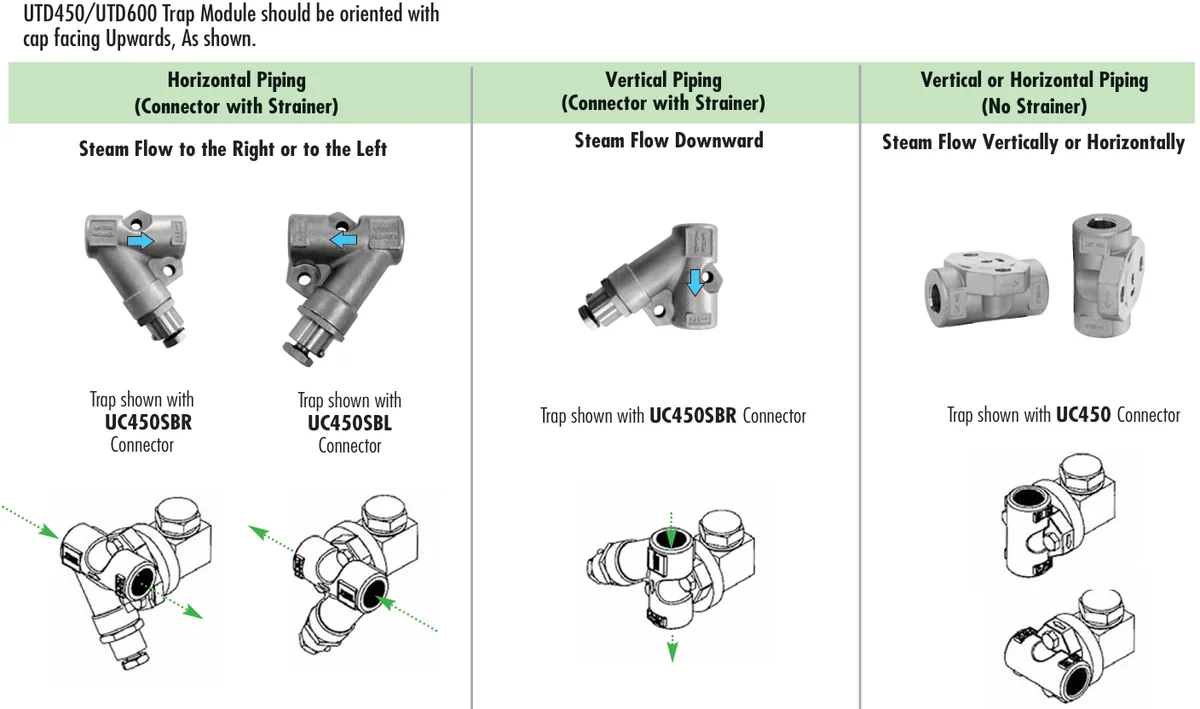

- Trap module can swivel 360° on the universal connector allowing proper orientation
Product Overview
The UTD450SM and UTD600LSM Thermodynamic Trap Modules were designed to work as drip traps for the draining of condensate from steam mains and other steam supply lines. These steam traps can be used on either vertical or horizontal piping installations and mount to any 2-bolt Quick-Change Universal Connector. UTD450LSM is the Low-Capacity Model.

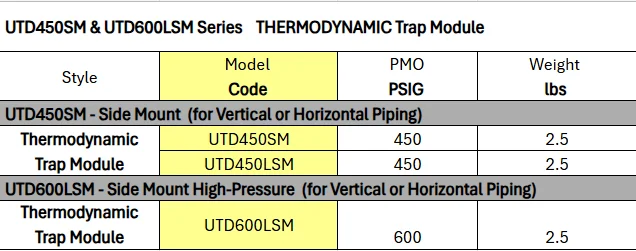

UTD450SM vs UTD600LSM
| UTD450SM | Side Mount (Vertical or Horizontal Piping) — Max 450 PSIG |
| UTD600LSM | Side Mount High-Pressure (Vertical or Horizontal Piping) — Max 600 PSIG |
Connector Selection
- UC450 (No Strainer)
- UC450SR (Strainer)
- UC450SBR (Strainer & Blowdown Valve)
- UC450SL (Strainer)
- UC450SBL (Strainer & Blowdown Valve)
- UTS600R (Test Station)
| Weight | 2.0 lbs |
|---|---|
| Brand | Watson McDaniel |
