Condensate Return Pumps – Pressure Motive Pumps PMPF Series Skid Mounted
Price range: $18,725.47 through $66,964.48
Receiver Size: 75 gal Complete packaged skid systems include one or more Pressure Motive Pumps (PMPs) along with a vented receiver mounted oncommon base.
Condensate Return Pumps — Pressure Motive Pumps PMPF Series Skid Mounted Triplex

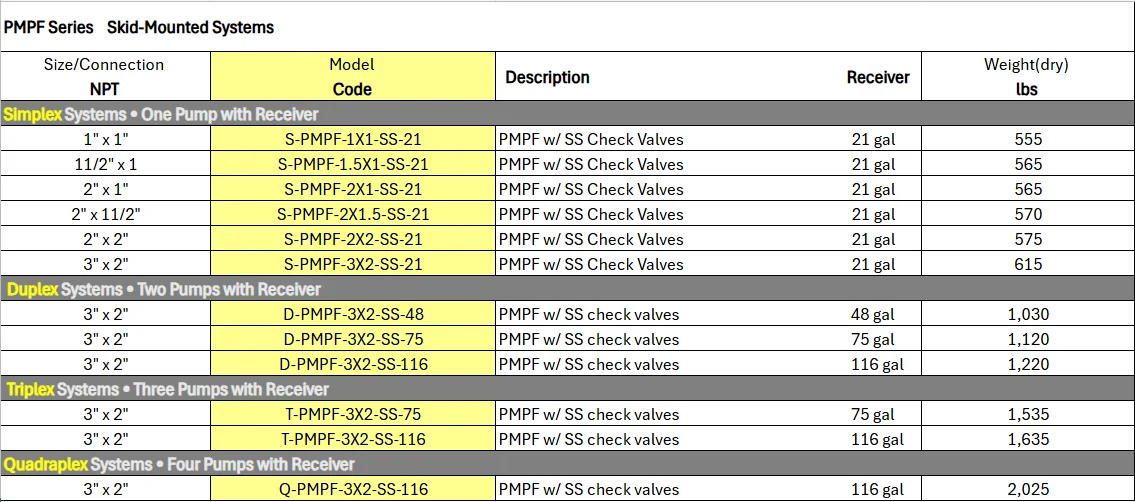

Specifications
| Series | T-PMPF-3X2-SS-75 |
| Configuration | Triplex (3-pump) |
| Size/Connection | 3" X 2" NPT |
| Receiver Size | 75 gallon |
| Weight | 1,535 lbs |
Complete packaged triplex skid systems include three Pressure Motive Pumps (PMPs) with a vented receiver mounted on a common base. The fabricated carbon steel pump bodies include 1/8" corrosion allowance and ASME “UM” code stamp. Triplex systems provide increased capacity and redundancy. All components are pre-piped, requiring only four field connections.
Features
- Patented “Snap-Assure” design extends pump life
- Heat-treated stainless steel wear items
- Operates using steam, air, nitrogen, or other pressurized inert gases
- Carbon steel fabricated tank with corrosion allowance
Note: We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 150 pounds. These costs will be billed separately.
| Weight | N/A |
|---|---|
| Brand | Watson McDaniel |
| Configuration | Duplex by, Simplex by, Triplex by |
