HD Series Pilot-Operated Regulator (
Price range: $910.35 through $13,691.66
The HD Series Pilot-Operated Regulating Valve was designed for extremely accurate control of temperature and pressure in steam service applications.
HD Series — Pilot-Operated Regulating Valve (Ductile Iron)
The HD Series Pilot-Operated Regulating Valve was designed for extremely accurate control of temperature and pressure in steam service applications. Made of Ductile Iron for extended pressure and temperature ratings, these regulators use several different control pilots mounted to the valve to control pressure, temperature, or a combination of both.
Product Overview
- Pilot-operated regulators offer higher accuracy and capacity than standard direct-operated regulators
- Available in ductile iron and cast steel

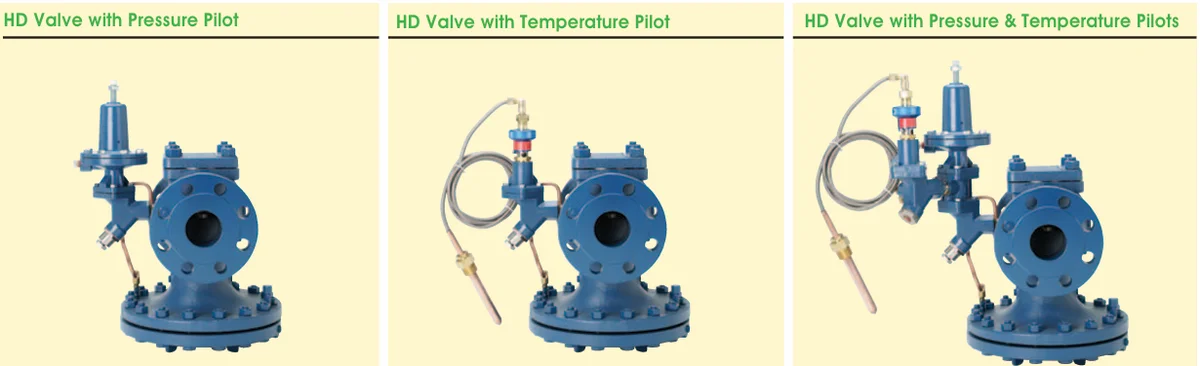

- Control pilots: P-Pilot (pressure reducing), T-Pilot (temperature control)
- Standard main valve for inlet pressure range of 15-300 PSIG
- Special low-pressure main valve for inlet pressure range of 5-20 PSIG
- Main valve and pilot are purchased separately
Specifications
| Size | 2-1/2" |
| Connection | 300# FLG |
| Weight | 109 lbs |
| Body Material | Ductile Iron |
| Inlet Pressure Range (Standard) | 15-300 PSIG |
| Inlet Pressure Range (Low-Pressure) | 5-20 PSIG |
Note: When two or more pilots are used on the same valve, an additional Pilot Adapter for Second Pilot is required (not required for Solenoid Pilot).
Note: We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 100 pounds. These costs will be billed separately.
| Weight | N/A |
|---|---|
| Brand | Watson McDaniel |
| Size & Connection | Low-Pressure Model) 1-1/2in 150# FLG by, Low-Pressure Model) 1-1/2in 300# FLG by, Low-Pressure Model) 1-1/2in NPT by, Low-Pressure Model) 1-1/4in NPT by, Low-Pressure Model) 1/2in NPT by, Low-Pressure Model) 1in 150# FLG by, Low-Pressure Model) 1in 300# FLG by, Low-Pressure Model) 1in NPT by, Low-Pressure Model) 2-1/2in 150# FLG by, Low-Pressure Model) 2-1/2in 300# FLG by, Low-Pressure Model) 2in 150# FLG by, Low-Pressure Model) 2in 300# FLG by, Low-Pressure Model) 2in NPT by, Low-Pressure Model) 3/4' NPT by, Low-Pressure Model) 3in 150# FLG by, Low-Pressure Model) 3in 300# FLG by, Low-Pressure Model) 4in 150# FLG by, Low-Pressure Model) 4in 300# FLG by, Low-Pressure Model) 6in 150# FLG by, Low-Pressure Model) 6in 300# FLG by, Standard Model) 1-1/2in 150# FLG by, Standard Model) 1-1/2in 300# FLG by, Standard Model) 1-1/2in NPT by, Standard Model) 1-1/4in NPT by, Standard Model) 1/2in NPT by, Standard Model) 1in 150# FLG by, Standard Model) 1in 300# FLG by, Standard Model) 1in NPT by, Standard Model) 2-1/2in 150# FLG by, Standard Model) 2-1/2in 300# FLG by, Standard Model) 2in 150# FLG by, Standard Model) 2in 300# FLG by, Standard Model) 2in NPT by, Standard Model) 3/4' NPT by, Standard Model) 3in 150# FLG by, Standard Model) 3in 300# FLG by, Standard Model) 4in 150# FLG by, Standard Model) 4in 300# FLG by, Standard Model) 6in 150# FLG by, Standard Model) 6in 300# FLG by |
