Flanges, Fittings, & Fasteners:
A flange is a forged or cast ring of steel designed to connect sections of pipe or join pipe to a pressure Vessel, pump or any other integral flanges assembly. Flanges are joined to each other by bolting and joined to the piping system by welding or threading. The basic types of flanges are; Slip on, Blind, Weld Neck, Threaded, Socket Weld, Lap Joint and Orifice. Flanges are designed to the following pressure ratings; 150lb, 300lb, 400lb, 600lb, 900lb, 1500lb and 2500lb.
Flanges, Fittings, & Fasteners

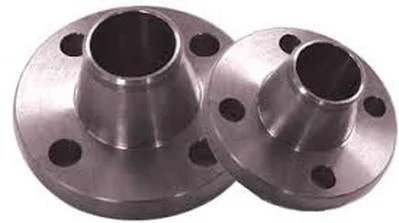

Flanges
A flange is a forged or cast ring of steel designed to connect sections of pipe or join pipe to a pressure vessel, pump, or any other integral flange assembly. Flanges are joined to each other by bolting and joined to the piping system by welding or threading.
Basic types: Slip On, Blind, Weld Neck, Threaded, Socket Weld, Lap Joint, and Orifice.
Pressure ratings: 150lb, 300lb, 400lb, 600lb, 900lb, 1500lb, and 2500lb.
Common Flange Facings
| Raised Face | 1/16″ for 150lb and 300lb; 1/4″ for 400lb and heavier |
| Flat Face | For 150lb and 300lb only; other ratings available on request |
| Ring Type Joint | May be applied to all pressure ratings |
Fittings
A fitting is used in pipe plumbing systems to connect straight pipe or tubing sections, adapt to different sizes or shapes, and for other purposes such as regulating or measuring fluid flow. We can help with all your fittings needs and also offer consulting to find solutions to your problems.
Fitting Types
- Tee, 45’s, 90’s, Street 90’s
- Nipples, Hammer Union, Union
- Eccentric Reducer, Concentric Reducer
- Bushing, Plug (Hex, Allen, Square, Round)
- Coupling, Half Coupling, Cross
- Crowsfoot, Elbowlet, Union Cap
- Thread-O-Let, Weld-O-Let, Sock-O-Let
- Pipe Caps, Stub-In
| Materials | Carbon Steel, Black Malleable Iron, 316 Stainless, 304 Stainless |
| Options | Butt-weld, Threaded, Socket-Weld |
Fasteners
- All Sizes & Threads including SAE and metric
- B7, B7M, B8, B8M Double Ends – Tap Ends
- B16, L7 with Nuts Assembled & Unassembled
- Hex Head Cap Screws
- Machine Bolts
- Special Bent Bolt J, L, and U Bolts
- Xylan and Custom Coatings Available
No Fastener Is Too Big Or Too Small!
Note: Website pricing is subject to change based on availability, customization, and market rates. Quotes good for 30 days unless otherwise noted.
| Brand | Biggy Piggy |
|---|
